Utah school relies on HydroStor® chambers to increase parking space
Quick Details
Product Type(s):
Goldflo® dual-wall pipe and fittings, HydroStor® HS31 Chambers
Application Type(s):
Underground Detention
Installation Date:
June 2025
Location:
Saratoga Springs, Utah United States
Abstract
In the summer of 2025, Lakeview Academy, an elementary school in Saratoga Springs, Utah, upgraded its facilities to add more parking space. For the stormwater management system, the contractor, a loyal Prinsco customer for over a decade, chose HydroStor® HS31 stormwater chambers.

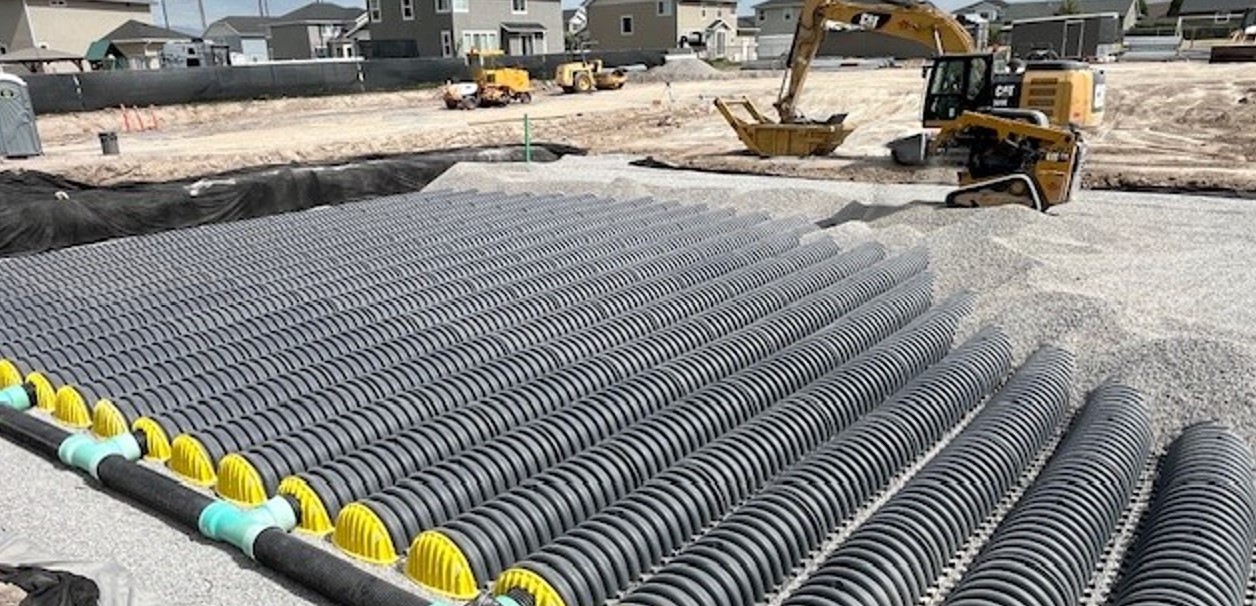

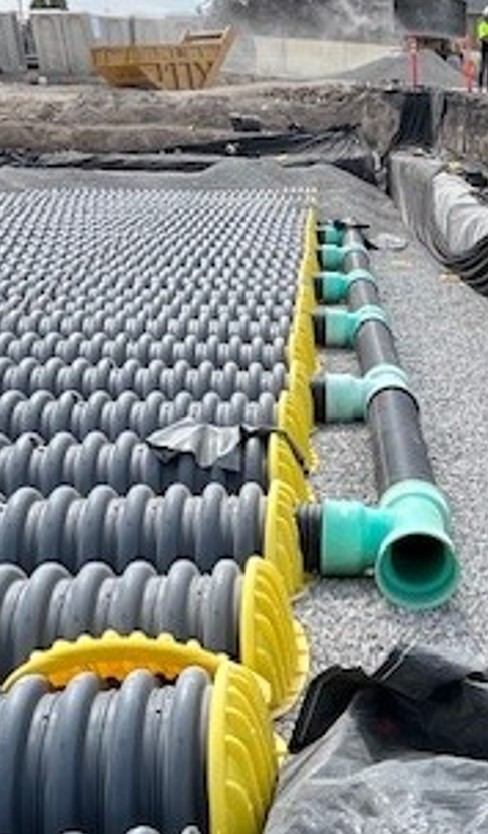

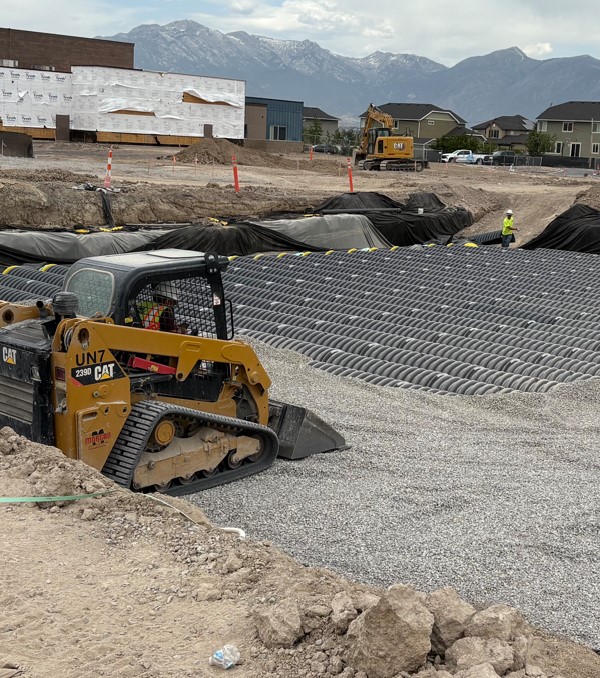

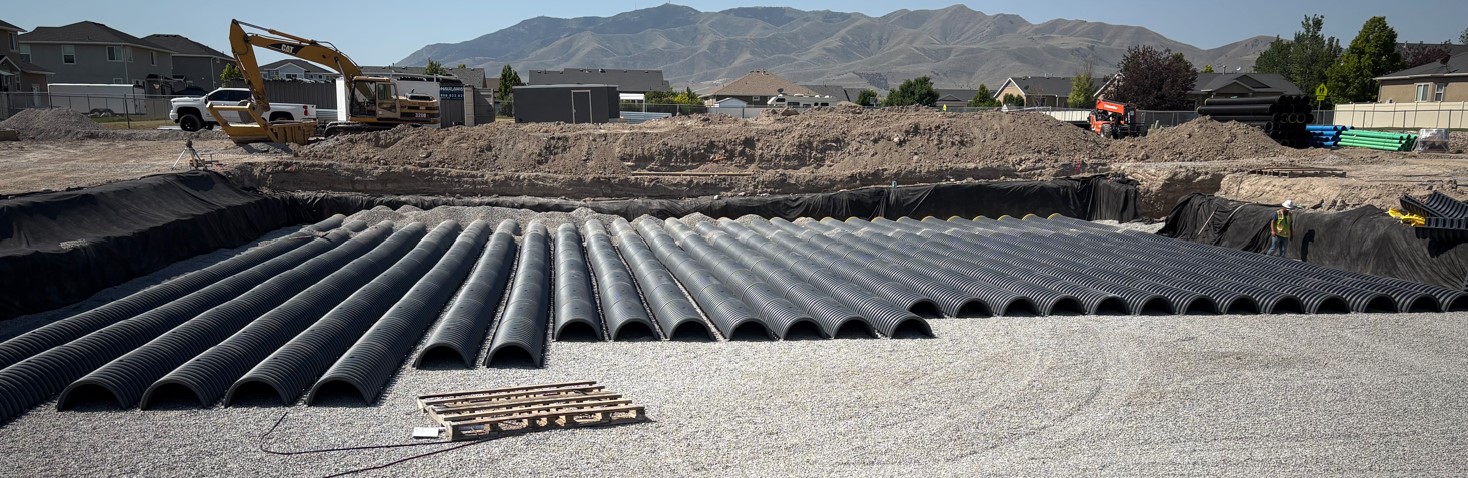

Two chamber systems were installed, making it possible to transform two ponds into parking lots. Providing 23,000 cubic feet of storage, these systems included a total of 752 Prinsco HydroStor chambers along with 8-inch, 10-inch, and 12-inch Prinsco Goldflo® pipe and fittings for each chamber system’s manifolds. Due to a high water table, the chambers were installed at a shallow depth and included a thermoplastic liner to eliminate infiltration.
Key Project Features

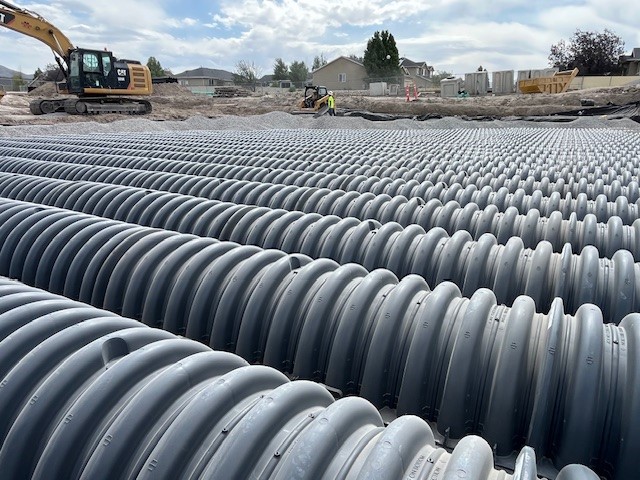

- Significant storage capacity: 752 HydroStor HS31 storm chambers were installed in two systems beneath new parking areas, providing over 23,000 cubic feet of underground storage.
- Engineered for non-infiltration: A thermoplastic liner was incorporated into the design to eliminate infiltration and protect surrounding soil and infrastructure.
- Durable construction: Meets AASHTO Section 12 loading requirements and ASTM F2418 and ASTM F2787 standards.
- Low-maintenance system: The Prinsco Sediment Row captures more than 80% of silt and sediment.
To experience people-powered support, find your sales rep or regional engineer at prinsco.com/storm-sales.
