GOLDLINE®

Soil-tight single-wall pipe

Product Type: Single-Wall

GOLDLINE®

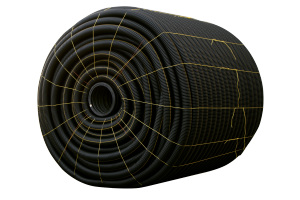

GOoldline® is soil-tight, high density polyethylene plastic pipe. It is available in mini rolls, maxi rolls, and 10- and 20-foot stick lengths.

Goldline® is available in perforated (slots), drilled (holes) or non-perforated configurations, and can be supplied with high performance geotextile fabric.

12″ Goldline® G2

Goldline® G2 is the second generation of our 12” Goldline product. It has been re-engineered based on customer feedback to meet the rising demands of today’s drainage contractors who are using advanced technology, high speed plows and installing well into the winter months. The new design is ideal for cold weather performance with 80% more flexibility and 30% more strength.

Contact your Prinsco sales rep to purchase GOLDLINE®.

Related

Goldline® Benefits

  • Lightweight and easy to maneuver for efficient installation.
  • Meets or exceeds ASTM F405 or F667 requirements.
  • Available in AASHTO grade to meet or exceed AASHTO M252 or M294 requirements.
  • HDPE material is completely resistant to rusting, corrosion, and deterioration. Available in perforated and non-perforated configurations.
  • Available in coils or sticks.
  • Non-perforated 10 foot lengths are available with Prinsco Lock-Fast Integral Couplers.
  • Each pipe end has four built-in lugs which snap into place by simply pushing the two adjoining pipe ends together, eliminating the need for a separate coupler.

12″ Goldline® G2 Benefits

  • Ideal for cold weather installs – more flexible
  • Easier handling – less curling off the stringer
  • Easier coupling – less force needed to join ends
  • Safer installation – less manual handling
  • Increased structural performance – more confidence
SticksToggle
Diameter Perforated Non-Peforated Non-Perforated
 Lock-Fast Couplers		 Length Unit Wt./Lbs.
3″ 030010PF 030010NP   10′ 100′ 2
4″ 040010LBC 040010NPC   10′ 100 3
4″ 040010PFC     10′ 100′ 31
4″ 040020PF 040020NP   20′ 20′ 6
6″ 060020PF 060020NP   20′ 20′ 14
8″     080010NPC 10′ 10′ 12
8″ 080020PF 080020NP   20′ 20′ 26
10″     100010NPC 10′ 10′ 20
10″ 100020PF 100020NP   20′ 20′ 40
12″ G2     120010NPC 10′ 10′ 30
12″ G2 120020PF 120020NP   20′ 20′ 60
15″     150010NPC 10′ 10′ 42
15″ 150020PF 150020NP   20′ 20′ 86



Perforated CoilsToggle
Diameter Number Length Unit
2″ 020100PF 100′ Micro
2″ 020500PF 500′ Mini
3″ 030100PF 100′ Micro
3″ 030300PF 300′ Mini
3″ 035300PF 5,300′ Maxi
4″ 040100PF 100′ Micro
4″ 040150PF 150′ Micro
4″ 040250PF 250′ Mini
4″ 043000PF 3,000′ Maxi
5″ 050165PF 165′ Mini
5″ 052300PF 2,300′ Maxi
6″ 060100PF 100′ Mini
6″ 061450PF 1,450′ Maxi
8″ 080390PF 390′ Mini
8″ 080825PF 825′ Maxi
10″ 100525PF 525′ Maxi
12″ G2 120320PF 320′ Maxi



Non-Perforated CoilsToggle

Not intended to replace sock or fabric around pipe; provided as a service to our customers without any implied warranties.

Diameter Number Length Unit
2″ 020100NP 100′ Micro
2″ 020500NP 500′ Mini
3″ 030100NP 100′ Micro
3″ 030300NP 300′ Mini
3″ 035300NP 5,300′ Maxi
4″ 040100NP 100′ Micro
4″ 040250NP 250′ Mini
4″ 043000NP 3,000′ Maxi
5″ 050165NP 165′ Mini
5″ 052300NP 2,300′ Maxi
6″ 060100NP 100′ Mini
6″ 061450NP 1,450′ Maxi
8″ 080390NP 390′ Mini
8″ 080825NP 825′ Maxi
10″ 100525NP 525′ Maxi
12″ G2 120320NP 320′ Maxi
Coils with Installed Knitted Polyester WrapToggle
Diameter Number Length Unit
3″ 030100SF 100′ Micro
3″ 030300SF 300′ Mini
3″ 035300SF* 5,300′ Maxi
4″ 040100SF 100′ Micro
4″ 040250SF 250′ Mini
4″ 043000SF 3,000′ Maxi
5″ 050165SF 165′ Mini
5″ 052300SF 2,300′ Maxi
6″ 060100SF 100′ Mini
6″ 061450SF 1,450′ Maxi
8″ 080390SF 390′ Mini
8″ 080825SF 825′ Maxi
10″ 100525SF 525′ Maxi
12″ G2 120320SF 320′ Maxi

*Special Order Items.

Note: Geotextile fabric specifications are available upon request.

Sticks with Installed Knitted Polyester WrapToggle
Diameter Number Length Unit
8″ 080020SF* 20′ Stick
10″ 100020SF* 20′ Stick
12″ G2 120020SF* 20′ Stick
15″ 150020SF* 20′ Stick

*Special Order Items.

Note: Geotextile fabric specifications are available upon request.

Leachbed PipeToggle

Has 3 rows of holes on the bottom of the pipe

Diameter Number Length Unit
4″ 040100LB 100′ Micro
4″ 040250LB 250′ Mini
Muck PipeToggle

Has 3 rows of large-diameter holes at intervals of 120º

Diameter Number Length Unit
4″ 040100MH 100′ Micro
4″ 043000MH 3,000′ Maxi
5″ 050165MH 165′ Mini
6″ 060100MH 100′ Mini
6″ 061450MH 1,450′ Maxi
Narrow Slot PipeToggle

Not intended to replace sock or fabric around pipe; provided as a service to our customers without any implied warranties.

Diameter Number Length Unit
4″ 040250NS 250′ Mini
4″ 043000NS 3,000′ Maxi
5″ 050165NS 165′ Mini
5″ 052300NS 2,300′ Maxi
6″ 060100NS 100′ Mini
6″ 061450NS 1450′ Maxi
8″ 080825NS 825′ Maxi
10″ 100525NS 525′ Maxi
12″ G2 120320NS 320′ Maxi



  • ASTM F 405: Corrugated Polyethylene (PE) Pipe and Fittings
  • ASTM F 667: Standard Specification for Large Diameter Corrugated Polyethylene Pipe and Fittings

[AASHTO grade GOLDLINE® pipe meets the above standards, plus the list below]

  • AASHTO M 252 TYPE C: Standard Specification for Corrugated Polyethylene Drainage Pipe
  • AASHTO M 294 TYPE C: Standard Specification for Corrugated Polyethylene Pipe, 300 – 1500 mm Diameter
  •
